does anyone have a wiring diag for a GS10 with tone control.
Thanks
GD10 wiring diag
Moderator: Dave Mudgett
-
Billy Knowles
- Posts: 1642
- Joined: 15 Nov 1999 1:01 am
- Location: Kenansville, N. C. 28349 usa
- State/Province: -
- Country: United States
GD10 wiring diag
Billy Knowles
STEEL GUITAR EAST
Emmons authorized dealer and approved service technician
my web site: http://www.steelguitareast.com
STEEL GUITAR EAST
Emmons authorized dealer and approved service technician
my web site: http://www.steelguitareast.com
-
Jon Light (deceased)
- Posts: 14336
- Joined: 4 Aug 1998 11:00 pm
- Location: Saugerties, NY
- State/Province: -
- Country: United States

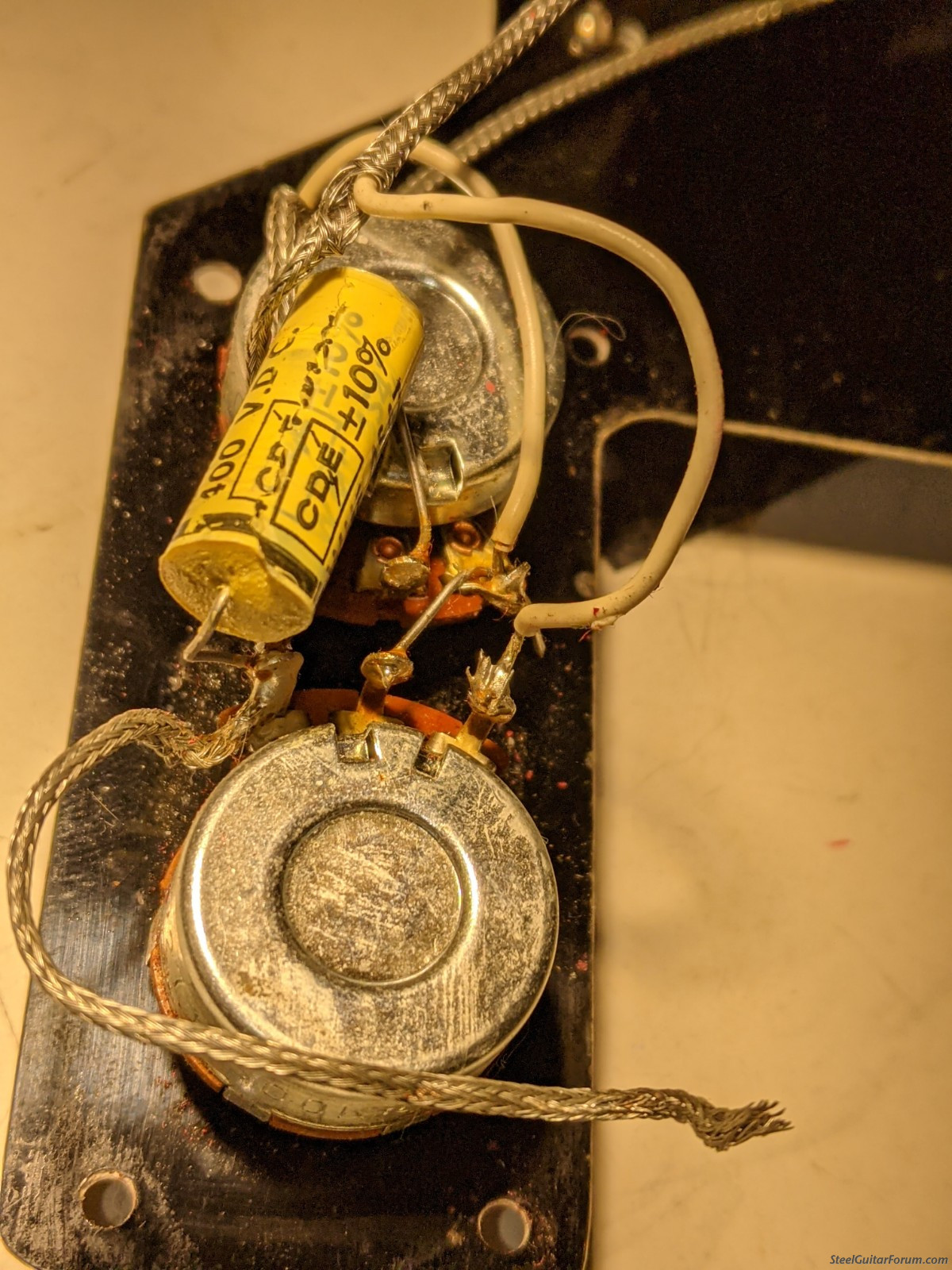

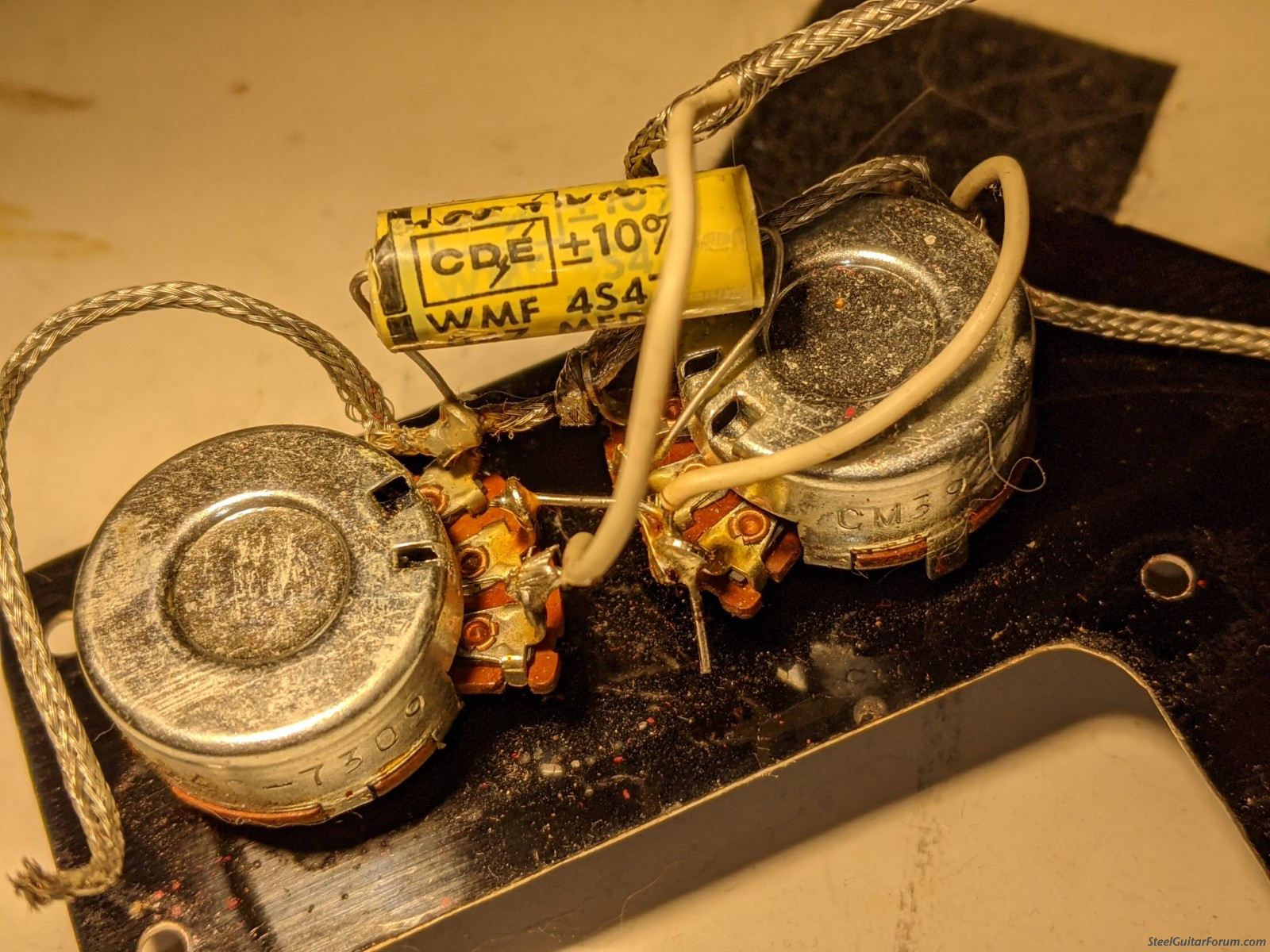

These photos are from a GS-10 I worked on last year. After I unsoldered everything to change out the very scratchy pots, I discovered that these pots are smaller than average modern pots. My new pots did not fit in the wooden cavity. Rather than hack away at the wood I put the old ones back in and told the cliient that if he REALLY really wanted the job done I'd do some homework and see if I could find the right size. It's been sort of forgotten now but if anyone does have info, part numbers, I'd sure like to know.
Hope these pics help.
Hope these pics help.
