Need older Sho~Bud volume pedal restored.

Amplifiers, effects, pickups, electronic components, wiring, etc.

Moderator: Dave Mudgett

User avatar
Tim Harr
Posts: 2569
Joined: 4 Aug 1998 11:00 pm
Location: Dunlap, Illinois
State/Province: Illinois
Country: United States

Need older Sho~Bud volume pedal restored.

Post by Tim Harr »

I have an old Sho~Bud volume pedal that is scratched and oxidized.

Who do we all know that can restore this ? (removing/buffing out the scratches, polishing, new rubber foot pad, black lettering, new pot, etc, etc)
Tim Harr

Mullen G2 D-10
Fender Telecaster Glaser B Bender, Martin HD-28, Sire H7
Kemper Profiler, LW 89

Retired, US Army Band (Steel/Dobro/Guitar)
User avatar
Tim Harr
Posts: 2569
Joined: 4 Aug 1998 11:00 pm
Location: Dunlap, Illinois
State/Province: Illinois
Country: United States

Post by Tim Harr »

Tim Harr

Mullen G2 D-10
Fender Telecaster Glaser B Bender, Martin HD-28, Sire H7
Kemper Profiler, LW 89

Retired, US Army Band (Steel/Dobro/Guitar)
User avatar
John Drury
Posts: 2167
Joined: 23 May 1999 12:01 am
Location: Gallatin, Tn USA
State/Province: Tennessee
Country: United States

Post by John Drury »

Tim,

The tricky part will be finding a new pot, assuming that the existing one can't be cleaned.

I am in the process of of refurbing mine and couldn't find a pot anywhere! Bradshaw is out of them and he told me he didn't know of anyone who had one.

I found this on ebay : https://www.ebay.com/itm/234517392932?_ ... 7Ciid%3A14

It has not arrived yet, but it should work okay it is new old stock and it is a 500K J like the one I pulled out, only no stop internally.

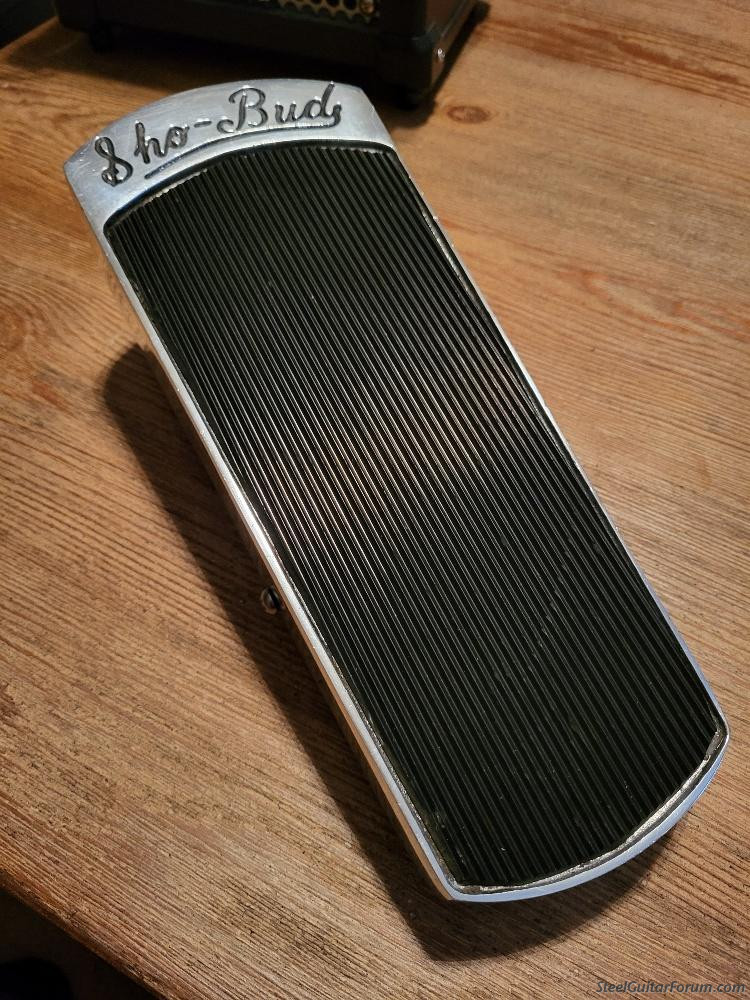

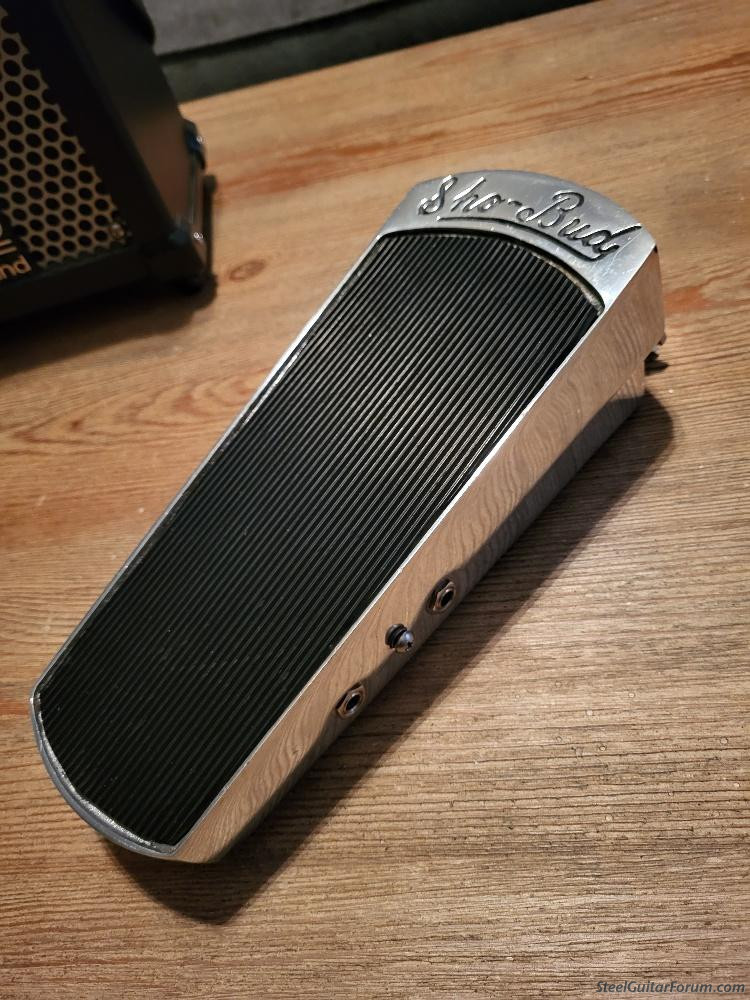

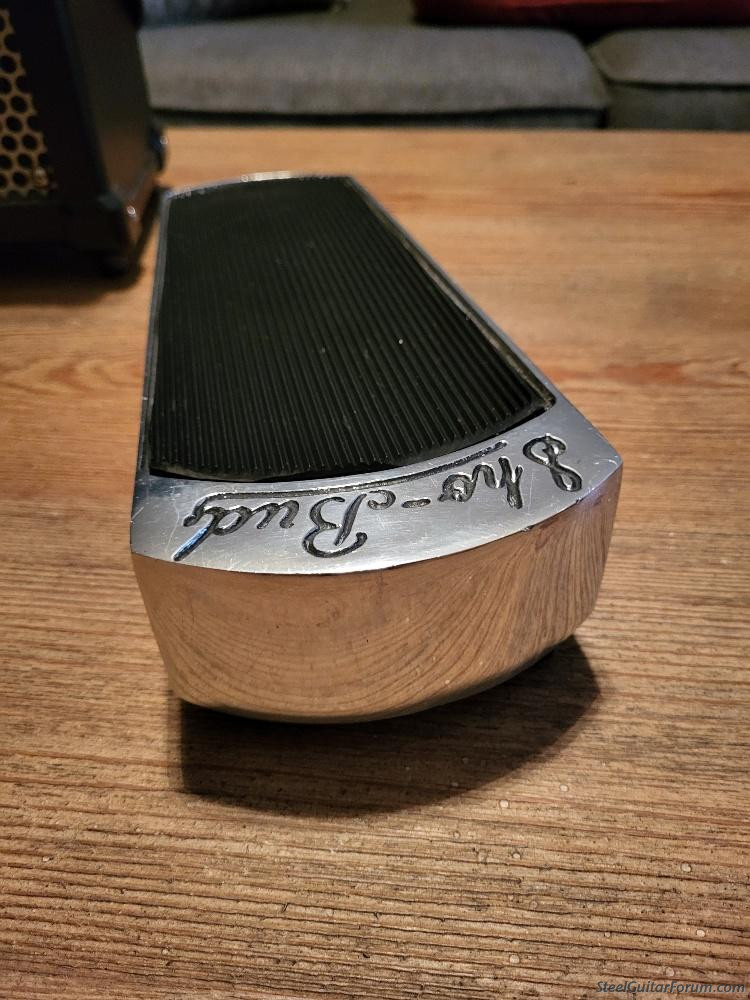

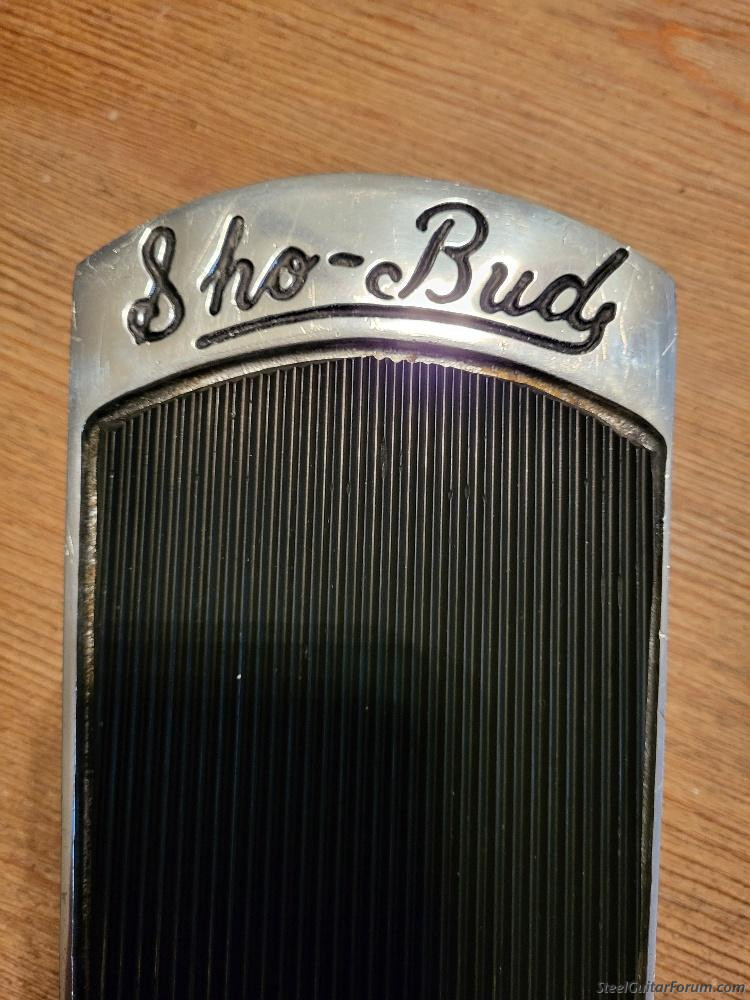

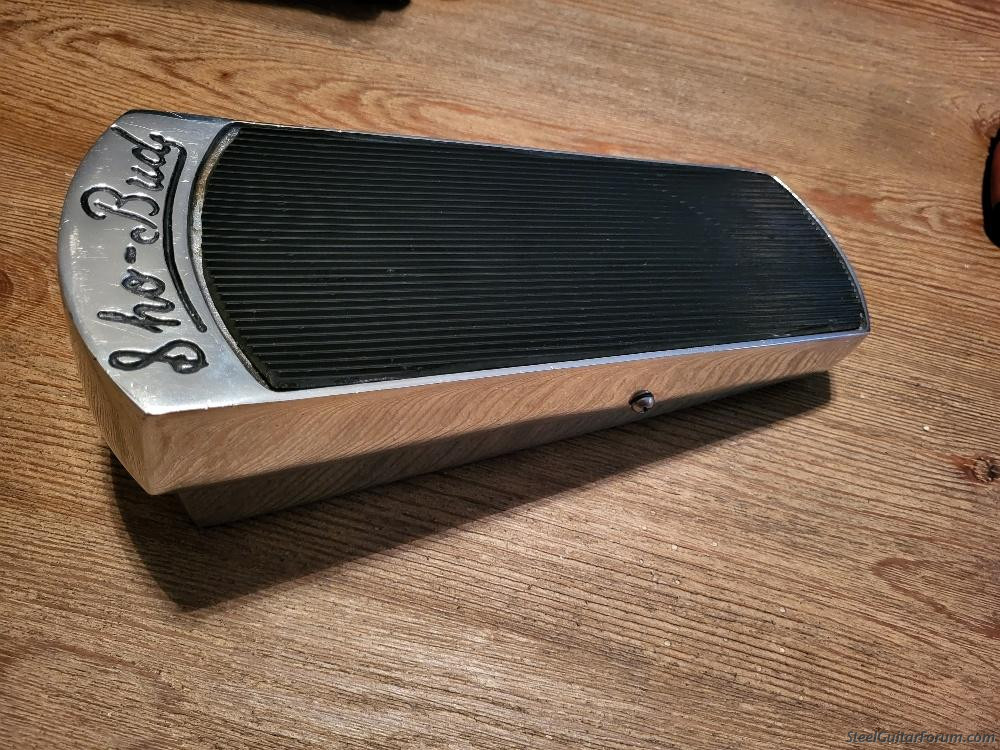

I cleaned mine up with Mothers Mag polish, about an hour or so of rubbing, no bigee. Cleaned the rubber with ST100 motorcycle washing spray.

It turned out decent for a 45 year old pedal.

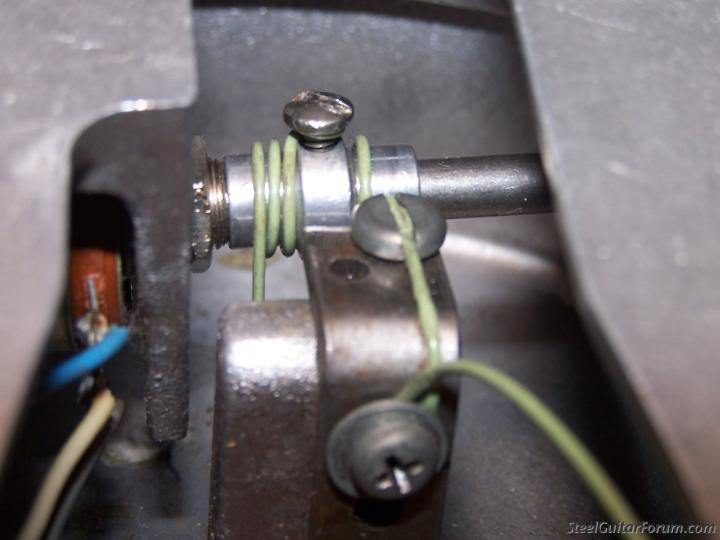

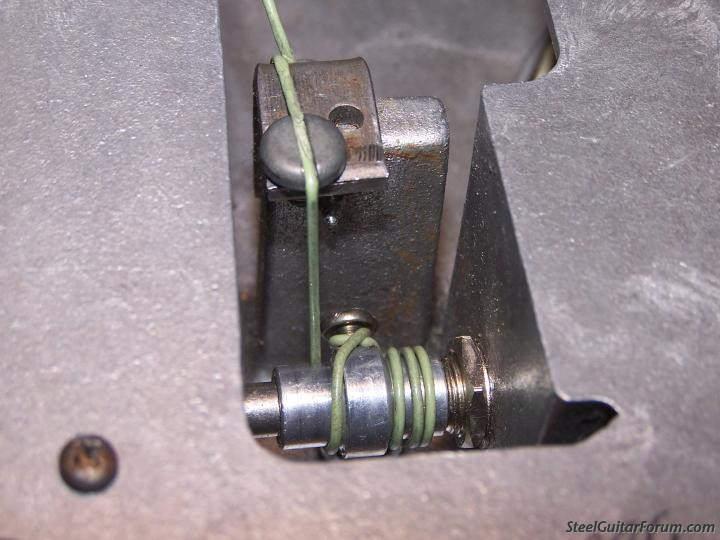

If you decide on the DIY route, here is how the string goes, I use fishing fly line. Not a very difficult project.




Good luck,

John
Last edited by John Drury on 27 Apr 2022 4:54 pm, edited 1 time in total.
John Drury
NTSGA #3

"Practice cures most tone issues" ~ John Suhr
User avatar
Tim Harr
Posts: 2569
Joined: 4 Aug 1998 11:00 pm
Location: Dunlap, Illinois
State/Province: Illinois
Country: United States

Post by Tim Harr »

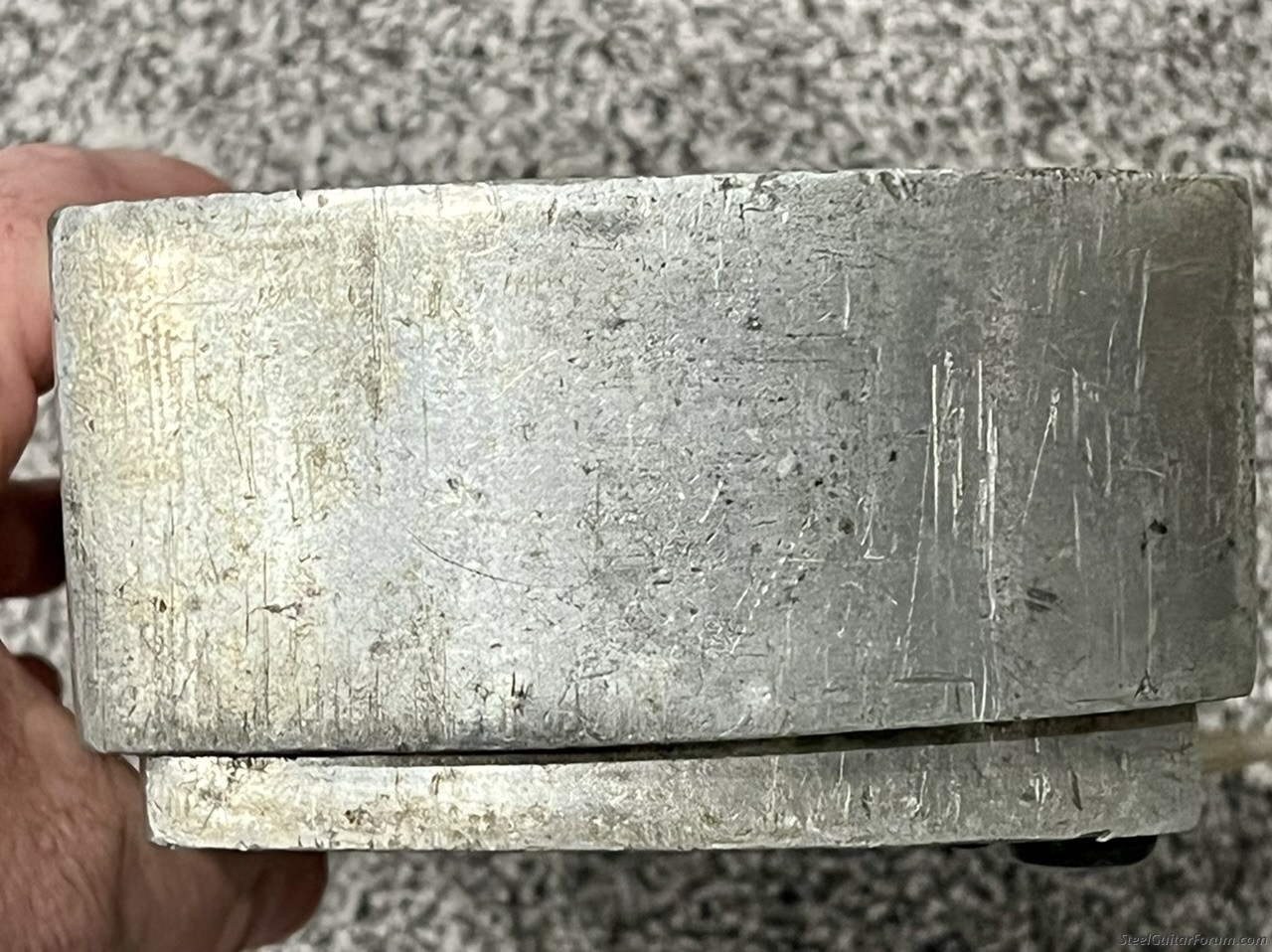

Need to see about these scratches
Tim Harr

Mullen G2 D-10
Fender Telecaster Glaser B Bender, Martin HD-28, Sire H7
Kemper Profiler, LW 89

Retired, US Army Band (Steel/Dobro/Guitar)
User avatar
John Drury
Posts: 2167
Joined: 23 May 1999 12:01 am
Location: Gallatin, Tn USA
State/Province: Tennessee
Country: United States

Post by John Drury »

Tim Harr wrote:Need to see about these scratches
Yeah, I see, that is going to require sanding and then some time on a buffing wheel!
It won't be cheap if you do find somebody!

You might try Jeff Surrat over at SHOW~PRO.

Good luck!
John Drury
NTSGA #3

"Practice cures most tone issues" ~ John Suhr
User avatar
John Drury
Posts: 2167
Joined: 23 May 1999 12:01 am
Location: Gallatin, Tn USA
State/Province: Tennessee
Country: United States

Post by John Drury »

That is why I like my clip on so much!

If you want a nice SHO~BUD clip on Wayne Dahl has one for sale on this forum. As I recall, it was reasonably priced.



J. D.
John Drury
NTSGA #3

"Practice cures most tone issues" ~ John Suhr
User avatar
Tim Harr
Posts: 2569
Joined: 4 Aug 1998 11:00 pm
Location: Dunlap, Illinois
State/Province: Illinois
Country: United States

Post by Tim Harr »

I would be using this for 6 string electric guitar
Tim Harr

Mullen G2 D-10
Fender Telecaster Glaser B Bender, Martin HD-28, Sire H7
Kemper Profiler, LW 89

Retired, US Army Band (Steel/Dobro/Guitar)
User avatar
Brian Lenherr
Posts: 188
Joined: 15 Aug 2009 6:04 pm
Location: Colorado, USA
State/Province: Colorado
Country: United States

Pot

Post by Brian Lenherr »

Hey John did that pot you linked work out ok? I have a dead Bud pedal and need to replace the pot. Hoping this is the solution.

Thanks!
