NV 400 Head in blue

Post by David Biggers »

Finally finished my NV400 -FOX Mod- head only..
and then I built a very small 15" speaker cab to set it on. The old NV 400 cabinet was trashed...
I had some 3/4" scrap plywood setting around so I put it to use.................................
Bronco Blue Tolex
Fender Blue/silver/white grill cloth
Chrome wrap around corners
Vintage White Chicken Head Knobs
White face w/blue lettering amp face decal.
Vintage Metal Peavey Emblem
MOD 3 spring 17" Reverb tank w/Fox wiring harness
External power cord outlet for a standard extension cord
Chrome speaker jack which is just a Fender neck plate drilled for 1/4" jack
All screws have plastic donuts under the chrome
finishing washers.
Blue Leather Handle

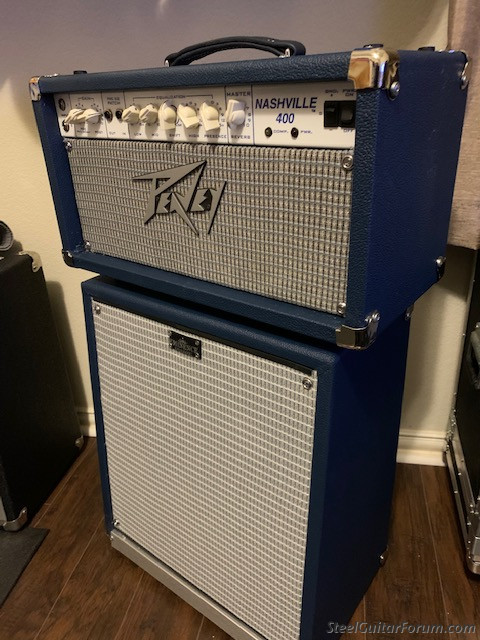

HERE IT IS..............................

Tell me what you think and share with me any ideas I may have overlooked .......................







Top
User avatar
Jeremy Moyers
Posts: 602
Joined: 4 Aug 1998 11:00 pm
Location: Lubbock, TX
State/Province: Texas
Country: United States

Post by Jeremy Moyers »

That looks great! I’ve been considering doing the same thing myself...
Top
User avatar
Larry Dering
Posts: 6053
Joined: 17 May 2013 11:20 am
Location: Missouri, USA
State/Province: Missouri
Country: United States

Post by Larry Dering »

Looks great. Very nice work and I'm sure a weight reduction.
Top
User avatar
Jerry Overstreet
Posts: 14819
Joined: 11 Jul 2000 12:01 am
Location: Louisville
State/Province: Kentucky
Country: United States

Post by Jerry Overstreet »

Great job David. Looks terrific.
Top
Don Mogle
Posts: 1555
Joined: 10 Aug 2000 12:01 am
Location: Round Rock, TX, USA
State/Province: -
Country: United States

Post by Don Mogle »

Very nice...might look better with speaker cabinet on its side! No amp overhang...
Top
User avatar
Chris Tarrow
Posts: 482
Joined: 27 Mar 2006 1:01 am
Location: Maplewood, NJ
State/Province: -
Country: United States

Post by Chris Tarrow »

Can you share the measurements you used for the head? Am thinking of doing this and wondering what height you used. Looks awesome!
Top
David Biggers
Posts: 2219
Joined: 13 Nov 2006 1:01 am
Location: Texas, USA
State/Province: Texas
Country: United States

Post by David Biggers »

Chris, the outside specs is as follows
20 width 10.5 tall 9.5 deep
11" tall would have been even better.

The reverb tank should be installed before you install the amp.
Bench test everything 1st. This was a rookie mistake by me...
My reverb doesn't work. It has a very bad humm I have a new molex harness from Ken Fox and a new Mod reverb tank.
Obviously I didn't think everything through with my speaker cabinet design.
Next time I will build the speaker cabinet to fit the head instead or like the one you see.

On a good note, the NV 400 works really good. Just need to use my reverb pedal with it.I just hoped to hear that Fox Mod that everyone speaks so highly of!

Reliable hardware has the chrome wrap around corners.
There are several places to get the tolex.
Leather handle is at Amazon
I used a chrome Fender neck plate for the speaker jack.
Top
Don Mogle
Posts: 1555
Joined: 10 Aug 2000 12:01 am
Location: Round Rock, TX, USA
State/Province: -
Country: United States

Decal

Post by Don Mogle »

David,

Could you make a blackface Fender decal for a PA 100? Reference my post on a Fender PA 100 restoration project for pictures and more detail.

Thanks,

Don
Top
Pat Chong
Posts: 438
Joined: 22 Dec 2015 9:04 pm
Location: New Mexico, USA
State/Province: New Mexico
Country: United States

Post by Pat Chong »

Hi Dave,

Did you have a problem with reverb hum before the new cases?

If not, I heard (in another post) about a posible cause, that if the power transformer is mounted too close to the reverb tank, it will cause hum......

Just a thought. Cases do look nice though, and as Larry mentioned the "weight reduction" is always helpful. I always liked the chicken-beak knobs....it does give a "vintage" look.

.........Pat
